Working out the function of a combination of gates?

Truth tables are able to be used to work out the function of a combination of gates.

Inputs

Outputs

 A

 B

 C

 D

 E

 Q

0

0

0

1

0

1

0

0

1

1

0

1

0

1

0

0

0

0

0

1

1

0

1

1

1

0

0

0

0

0

1

0

1

0

0

0

1

1

0

0

0

0

1

1

1

0

1

1

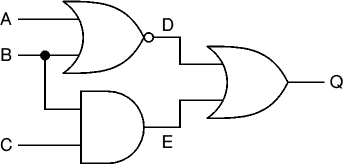

For illustration the truth table on the right show the intermediate outputs D and E as well as the final output Q for the system shown below.

2138_Working out the function of a combination of gates.png

D = NOT (A OR B)

E = B AND C

Q = D OR E = (NOT (A OR B)) OR (B AND C)
