Wideband Digital Cross Connects

A SONET  cross  connect  accepts  various  optical  carries  rates accesses the  STS signals  and switches at this level . it  is idally used at a SONET hub as shown  in  one major  difference  between a cross  connect  and an add drop  multiplexer is that  broadband cross connect can be  used for grooming  of STS  is or for broadband traffic management. For  example it may be used to segregate high bandwidth from low  bandwidth traffic and send it separately to high bandwidth   switch  and a low bandwidth  switch. It is the synchronous equivalent of aDS-3  digital cross connect  and support hubbed networks.

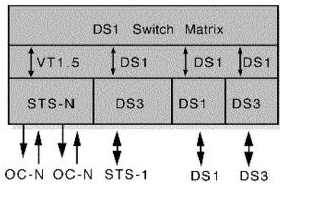

581_Wideband Digital Cross Connects.png

                                                                   Wideband Digital Cross Connects
