Wheatstone bridge, Other Engineering

Assignment Help:

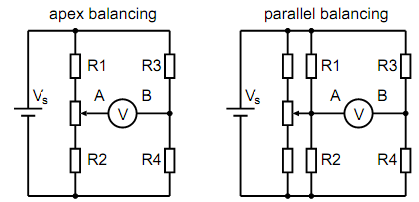

The resistance of the strain gauges is usually measured with a Wheatstone bridge. All bridges have balancing circuits which can be apex or parallel. Both methods are equivalent.

1493_Wheatstone bridge.png

We will often omit the balancing circuit from the diagrams for clarity. The resistors R1 - R4 can be different combinations of resistors, active and dummy strain gauges depending on the kind of strain to be measured.
