What is Two Way Punching Shear?

Two Way Punching Shear

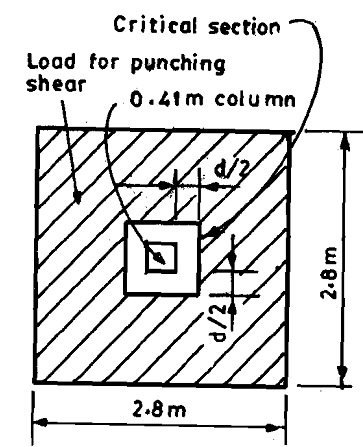

In columns, generally the tendency of the column is to punch through the footing.  This also is to be considered in design. In wall footings this will not be the case. According to IS, the two ways punching shear has to be checked along the surface of a truncated cone around the column. The critical perimeter is specified at a distance d/2 from the column face as in demonstrated figure in below:
