What is source transformation technique, Physics

Assignment Help:

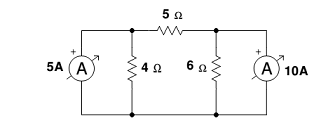

Determine current flowing through 5 ? resistor in the circuit demonstrated in Figure. Use Source transformation technique.

808_voltage gain.png

Ans:

Determination of current flowing through 5 ? resistor

Two current sources can't be combined together due to the 5 ? resistance presence between points A and C shown in Figure below. Though, hurdle can be removed by converting 5 A current source into the equivalent voltage source of 20 V and 10 A current source can be converted into equivalent voltage source of 60 V as illustrated in figure c.



1063_voltage gain.png

2493_voltage gain.png

The circuit illustrated in above Figure (c) is a simple series circuit having total voltage of 40V and total resistance of 4 + 5 + 6 = 15 ?. So, current flowing through 5 ?

Resistance is equal to 40/15 = 2.667 A
