Q. What is RingTopology?

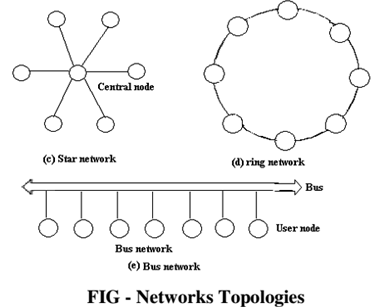

In ring topology, all user nodes are connected with physical path acting as links of a chain and last user node is connected back to the first node. A signal going on to the next node should be processed by the first node, which then passes it through to next node. Adding a new user requires breaking ring temporarily, inserting new node and then re-establishing complete ring path.

540_What is RingTopology.png
