What are the steps to make up flow charts, Operation Management

Assignment Help:

What are the steps to make up flow charts?

Most flow charts are made up of three main types of symbol.

• Oval shapes or elongated circles signify the start or termination of a process

1730_Oval Flow Charts.png

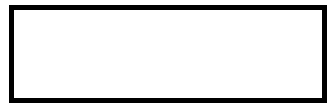

• Rectangles signify processes, instructions or actions

1141_ractangle flow chart.png

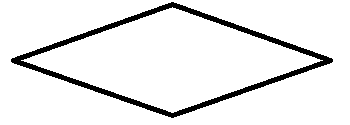

• Diamonds show decisions that need to be made

483_Diamonds flow chart.png
