What are Synchronous Decade Counters?

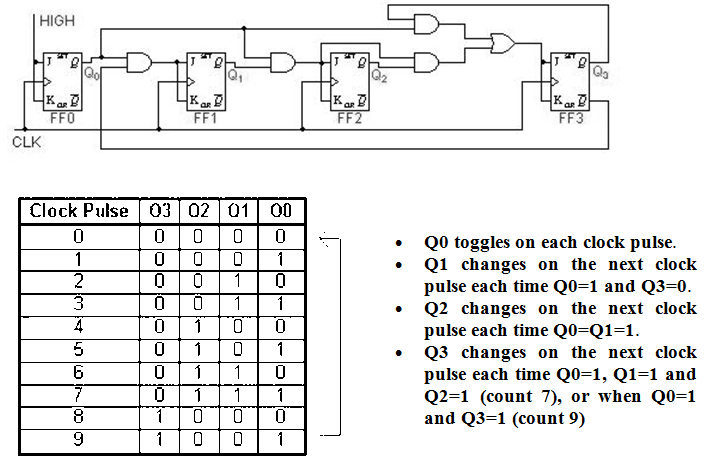

Alike to an asynchronous decade counter, the synchronous decade counter counts from 0 to 9 and then recycles to 0 again, This is done by forcing the 1010 state back to the 0000 state This thus called truncated sequence can be constructed by the following circuit.



1754_Synchronous Decade Counters.png
