Use delta-wye transformation for network reduction, Electrical Engineering

Assignment Help:

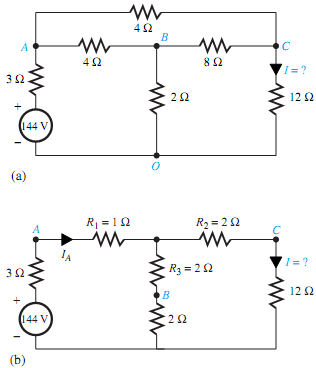

Use delta-wye transformation for network reduction and determine the current through the 12- resistor in the circuit of Figure(a).

1555_Use delta-wye transformation for network reduction.png
