Uml in dot.net programming, DOT NET Programming

Assignment Help:

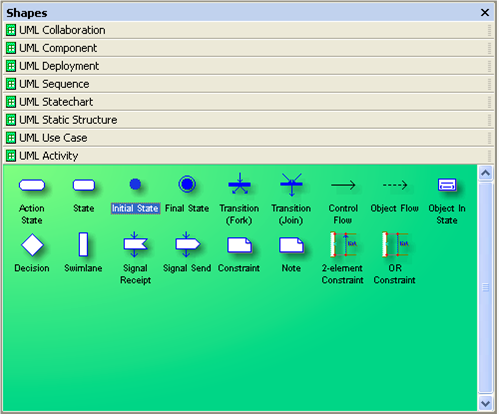

Give a small explanation of all Elements in the diagram.


Action State: - This is a type of state that has an internal action and one outgoing event that would do the internal action.

State: - This is a condition when following events occur:-

  • Whenever an Object satisfies a condition.
  • Or it performs a action.
  • Or wait for an event to happen.

Initial State: - The initial state represents a state before any event occurs.

Final State:- The final state represents the completion of an activity.

Transition Fork:: - It Denotes the beginning of parallel path activities.

Transition Join: - It denotes the merging of parallel path activities.

Control Flow: - It represents the relationship b/w two states and actions. In brief it indicates that an object in one state is entering some another state.

Object Flow: - it connects an object flow state to control flow or action state.

Object in State: - It Indicate the object's state after manipulation by multiple activities.

Decisions: - It defines if there are any condition's in the path.

Swim Lanes: - It assigns the responsibility to action states.

Signal receipt Shape: - It is used to replace an event label on a transition.

Signal Send Shape: - It is used to replace an event label on a transition.

Constraint: - The Conditions that must be maintained true in order the system is valid.
