TYPES OF WIRES:

 Cable used for wiring would match the following:

  • The intended speed
  • The distance between computers
  • The amount of noise
  • Anticipated future requirements
  • price

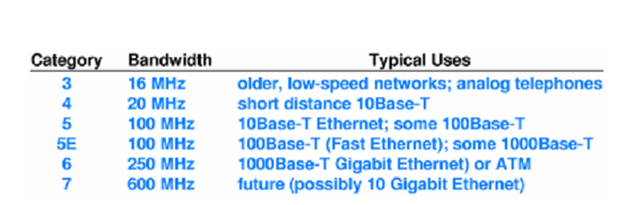

Some types and their typical uses are given in the figure below.1661_TYPES OF WIRES.png

Figure

WIRING SCHEMES AND OTHER NETWORK TECHNOLOGIES:

 Multiple wiring functions are not limited to Ethernet technology. Almost every network methods use different wiring procedures. IBM's token ring also needs hubs to run a logical ring network.
