Tunnelling

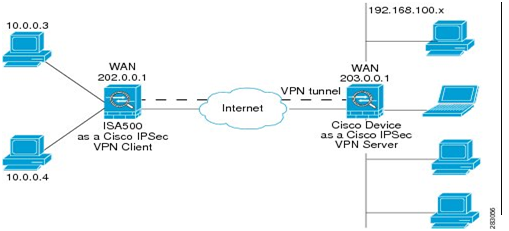

To guarantee privacy for the  organization, VPN specifies that each IP datagram destined for private  use of the  organization, must  first be  encrypted and then encapsulated in  another  datagram as shown in figure.

This is called  tunnelling  because the original  datagram is hidden inside the outer  datagram  after  exiting  R1 in and becomes  invisible until it reaches R2. It looks as if the  original  datagram has gone  through  a tunnel that  spans R1 an dR2.

As the  figure  shows  the entire  IP datagram  is first  encrypted carries  the actual  source and destination address of the  packet. The  outer datagram header carries  the source and destination of the two  routers at eh boundary of the  private and public  networks  as shows in figure.




                                                                              figure Addressing in a VPN
