TCP Segment Structure

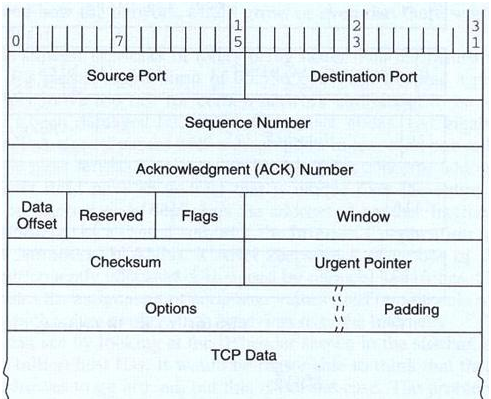

Figure shows the format of the TCP segment. The  header consists  of a 20 bytes  fixed  part  plus a variable size  options fields.

The description  of each  field in the TCP segment  is given below. The  term sender  refers to the host that  sends the segments  and receiver refers to the host  that receives the segments.



1001_TCP Segment Structure.png

                                                                     figure TCP Segment Structure
