States kirchoff''s voltage law, Electrical Engineering

Assignment Help:

States Kirchoff's Voltage Law

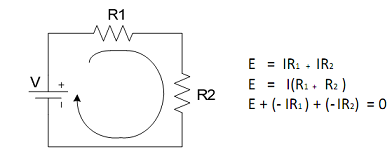

Kirchoff's Voltage Law (KVL) describes in any closed loop in a network, the algebraic sum Figure of the voltage drops (i.e. products of current and resistance) taken around the loop is equivalent to the resultant e.m.f. acting in that loop.
