Q. Show the procedure of Hex to Decimal Conversion?
To convert from the Hex to the Decimal, multiply the value in each position by its hex weight and add each value. Using the value from the previous illustration, 0AFB2H, we would expect to obtain the decimal value 44978.
A*16^3
F*16^2
B*16^1
2*16^0
10*4096
15*256
11*16
2*1
40960
3840
176
2
40960 + 3840 + 176 + 2 = 44978

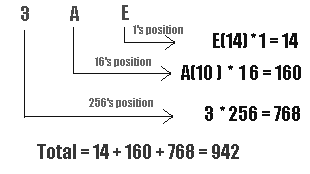

Illustration Determine the decimal equivalent for 3AEH.
Thus hexadecimal number 3AEH is equal to 942 in decimal.
