An SNMP integer whose value is 200 has to be transmitted. Show its representation in ASN.1 syntax.

An ASN.1 transfer syntax describes how values of ASN.1 types are unambiguously transformed to a sequence of bytes for transmission. All value transmitted contains up to four fields

  • Type of identifier
  • the length of data field into bytes
  • the data field
  • The end of content flag, if data length is not known.

The final is forbidden through SNMP; therefore we will suppose data length is always identified.

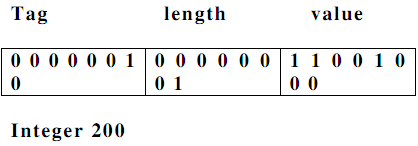

1761_SNMP integer.png
