Saturate the transistor with the base overdriven, Electrical Engineering

Assignment Help:

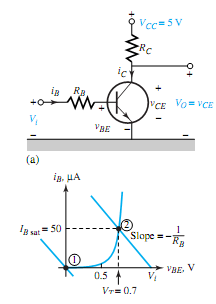

For the circuit of Figure, given that VCC = 5V, RC = 1k, β = 100, and the high range is 4 to 5 V, choose RB such that any high input will saturate the transistor with the base overdriven by a factor of at least 5. Assume Vsat to be 0.2 V.

1655_Saturate the transistor with the base overdriven.png
