Processing Sequence for Manufacturing Coupling Nut

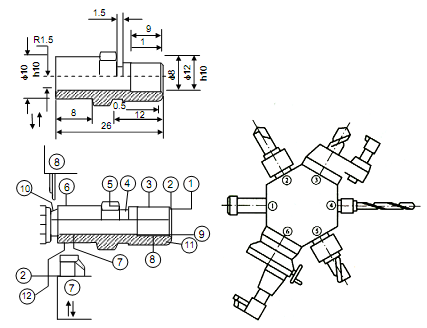

Referring to the Figure 12 below, we now illustrate the processing sequence for manufacturing coupling nut.

99_Processing Sequence for Manufacturing Coupling Nut 1.png

Figure 12 : Coupling Nut

Solution

The processing sequence that must be followed for manufacturing a coupling nut is illustrated in Table 5, which is self-explanatory.

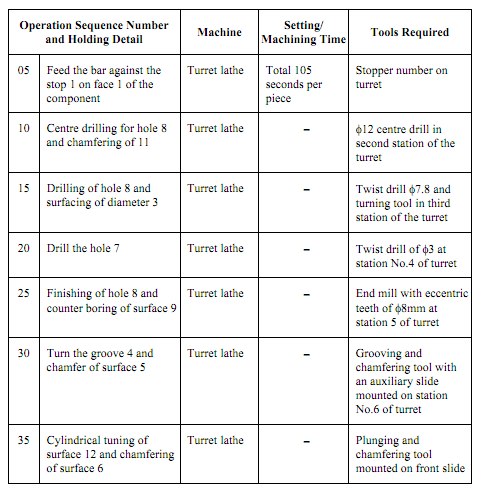

Table 5 : Processing Sequence for Manufacturing a Coupling Nut

1993_Processing Sequence for Manufacturing Coupling Nut 2.png
