Permanent magnets, Electrical Engineering

Assignment Help:

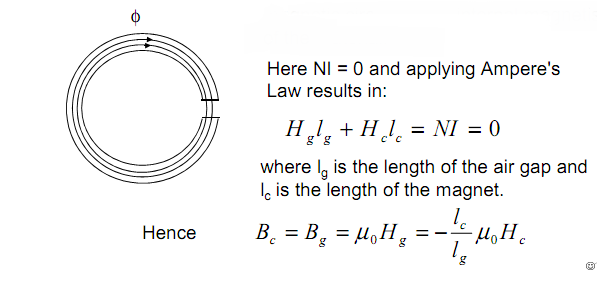

If a permanent magnet creates the flux in a magnetic circuit, the flux exists without the need for a coil, so how does Amperes Law apply to this case?

In this case the flux is driven round the magnetic circuit by the internal magnetism of the material.

119_permanent magnets.png
