Q.

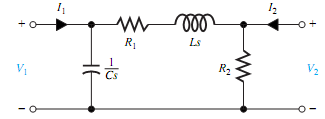

(a) Consider the capacitor - input filter circuit of Figure and obtain the z-parameters for the circuit.
(b) Determine the transfer function V2/V1 when I2 is zero.
