Obtain an expression for the closed-loop transfer function, Electrical Engineering

Assignment Help:

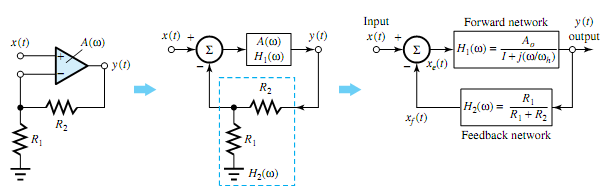

Q. A noninverting op-amp circuit and its closed-loop representation are given in Figure. Obtain an expression for the closed-loop transfer function H(ω) = Y (ω)/X(ω) and comment on how it behaves for large loop gain [i.e., when the product H1(ω)H2(ω) is large].
