Negative Voltage Regulator series with Nine voltage options - IC 7900 Series

1011_Negative Voltage Regulator series1.png

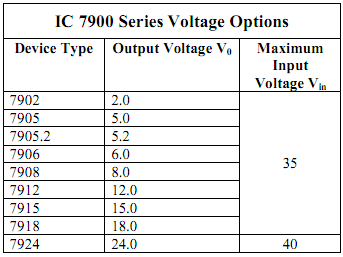

The IC 7900 series of fixed output negative voltage regulators are complements to the 7800 series devices. These negative regulators are available in the same seven voltage options as the 7800 devices.In addition two extra voltage options, -2V and -5.2V, are also available in the negative 7900 series.
