THE INVERTER ('NOT' GATE)

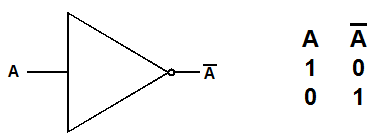

Figure shows the symbol for an inverter, where the output will produce the complement of the input. This device is often employed when the complement of a particular signal is required at some point in the logic circuit.
