Location and layout, Chemical Engineering

Assignment Help:

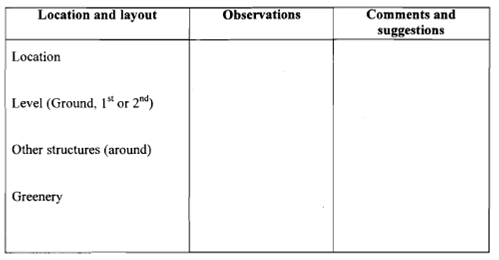

Location and layout : Note the location of the lab with respect to the rest of the building. Is the location satisfactory for efficient functioning? You can study the layout well if you draw a two-dimensional figure to show the position of various rooms in the lab Also draw the position of the doors since it is important to see the relationship among various rooms.

Draw a two-dimensional layout plan of the building.

2445_location and layout.png
