List out the evaluation order for the expression tree, Computer Engineering

Assignment Help:

Draw an expression tree for the string. f + (x+y) *((a+b)/(c-d)). Indicate the register requirement for each node and list out the evaluation order for the expression tree.

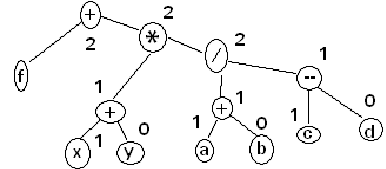

For the string "f + (x+y) *((a+b)/(c-d))" an expression tree is demonstrated below: Maximun register requirement is 2.

2011_Draw an expression tree.png

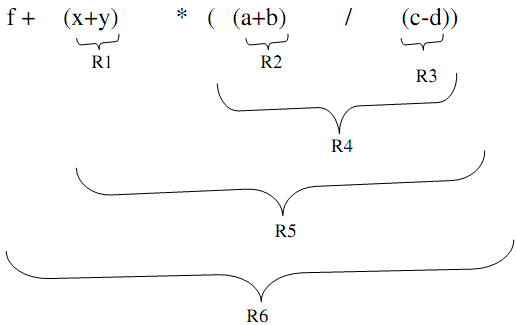

The expression will be estimated in the following order:

Resister R1 first, after that register R2, and so on.



815_Draw an expression tree1.png
