Interfaced 2k X 8 (i.e 2716) EPROM using multiple input NAND gate decoder for memory locations FF800H-FFFFFH.
Simple NAND gate Decoder: While the 2k x 8 EPROM is used so address connection A10 to A0 of the 8088 are connected to address inputs A10 to A0 of the EPROM. The last nine address pins (A19 to A11) are connected to the inputs of a NAND gate decoder. This decoder selects the EPROM by one of the a few 2Kbyte sections of the whole 1Mbyte address range of the 8088 microprocessor.

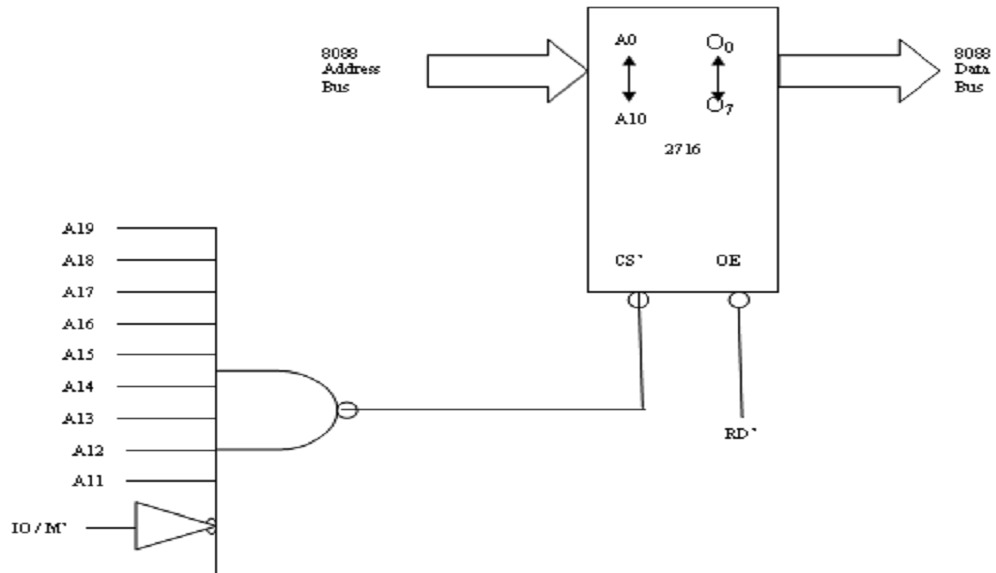

A simple NAND gate decoder used to select a 2716 EPROM
Within this circuit, a single NAND gate decodes the memory address. This output of the NAND gate is logic 0 when the 8088 address pins connected to its inputs (A19 to A11) are all logic 1s. This active low, logic 0 output of the NAND gate decoder is attached to the CE' input pin which selects (enables) the EPROM.
Define the term Paging Unit. Paging Unit: The paging mechanism functions along with 4K - byte memory pages or along with a new extension obtainable to the Pentium with 4M byt
Successive-approximation analog to digital converter This converter, shown in Figure, also contains a D/A converter, but the binary counter is replaced by a successive-approxim
Electric circuits or networks are formed by interconnecting various devices, sources, and components. Although the effects of each element (such as heating effects, electric-?eld e
design a single phase circuit from a supply point to a load
Q. Find the parameter values V T and I DSS for a p- channel MOSFET with i D = 0 when v GS ≤-3 V, and i D = 5 mA when v GS = v DS =-8V.You may neglect the effect of v DS on
PLS WRITE THE INTRODUCTION, METHODOLOGY AND LITERATURE REVIEW
Q. A BJT is biased by the method shown in Figure. If V BEQ = 0.7V, β = 100, V CEQ = 10 V, and I CQ = 5 mA, find I 1 , I 2 , and IEQ.
We shall demonstrate load-line analysis to find the diode current and voltage, and then compute the total power output of the battery source in the circuit of Figure (a), given the
Nodal analysis procedure: 1. Verify the number of common nodes and reference node within the network. 2. Assign current and its direction to every distinct branch of the n
a) Sketch the variation of electron concentration with temperature for i) an n-type semiconductor doped with 1021 donors m-3 ii) an intrinsic semiconductor. b) Expla
