Q. Illustrate working of T Flip-Flop?

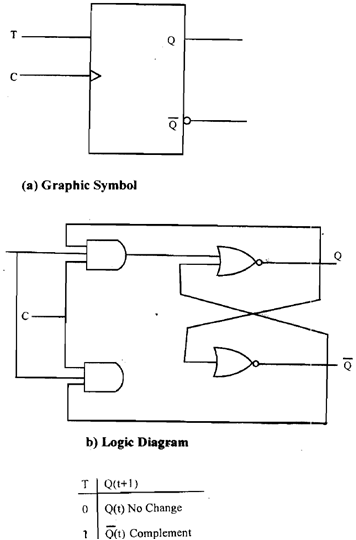

T (Toggle) flip-flop is attained from JK flip-flop by combining inputs J and K together. The implementation of T flip-flop is displayed in figure below. When T=0 clock pulse transition doesn't change state. When T=1 clock pulse transition complement the state of flip-flop.

164_T Flip-Flop.png

Figure: T- Flip flop
