Q. Illustrate working of J-K flip-flop?

J-K flip-flop is also a modification of SR flip-flop since it has 2 inputs same as S and R and all possible inputs combinations are valid in J K flip-flop. Figure below shows implementation of J K flip-flop. Inputs J and K act exactly as input S and R to set and reset flip-flop respectively. When J and K are 1 flip- flop output is complemented with clock transition.

134_Illustrate working of J-K flip-flop.png

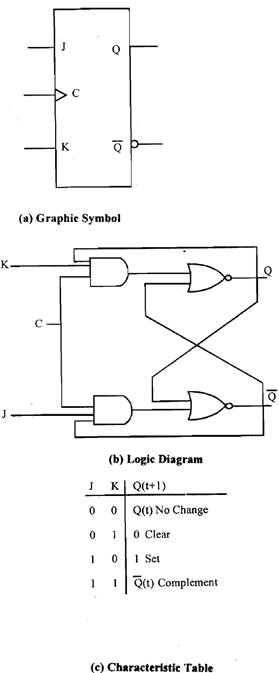

Figure: J - K Flip flop
