Illustrate the State model for the ATM class

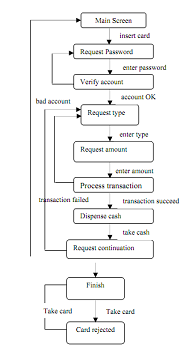

let us take state model for the ATM class given below in Figure showing state model of the ATM class and the pseudo code derived from it. In this method first, we choose the key path of control, this corresponds to the reading of a card querying user for transaction information, processing transaction, printing a receipt and ejecting card. If the customer wants to process for any alternates control that should be provided. Such as if the password entered by the customer is bad then customer is asked to try again.



2331_Control of states and events in ATM.png

   Control of states and events in ATM
