Q. Illustrate Layout of Magnetic Disk?

Head is a relatively small device capable of reading from or writing to a part of platter rotating beneath it. This gives rise to organization of data on platter in a concentric set of rings known as tracks. Every track is of same width as head. There are thousands of tracks for each surface.

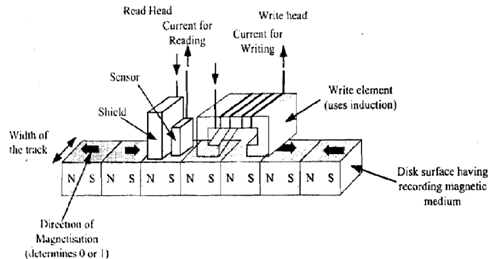

Figure: Layout of Magnetic Disk
