Hinged Support:

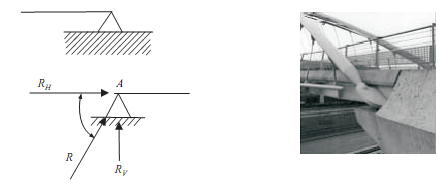

Hinged (Pin) Support: At hinged end, beam cannot move in any direction support will not develop any resisting moment, but it can develop reaction in any of the direction.

In hinged support, there are two reaction is acting, one is vertical and the other is horizontal. That is, RH  and RV
