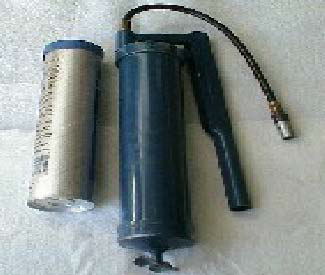

Grease Gun: A grease gun is shown in Figure. This is used to supply semi-solid lubricant (grease) for chassis lubrication.
Figure : Grease Gun
