Flight dynamics - velocity component, Other Engineering

Assignment Help:

Force, Moment, Velocity and Angular Velocity Components
• Aerodynamic Force Components
- X, Y, Z

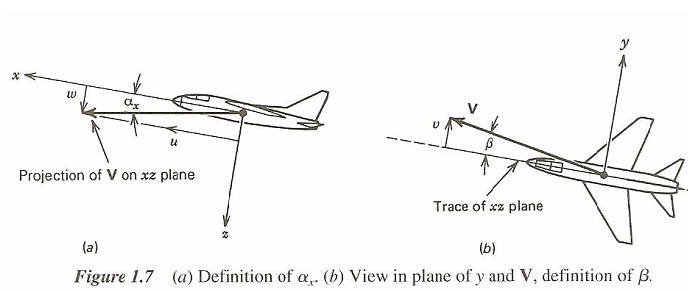

• Velocity Components
- U, V, W (or Vx, Vy, Vx)
• Angular Velocity Components
- P, Q, R
• P=Roll rate
• Q=Pitch Rate
• R=Yaw rate

512_velocity component.png
