Find the discharge between the two tanks, Physics

Assignment Help:

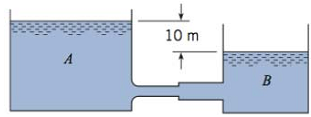

Water is draining from tank A to tank B. The elevation difference between the two tanks is 10 m. The pipe connecting the two tanks has a sudden-expansion section as shown. The cross-sectional area of the pipe from A is 8 cm2, and the area of the pipe into B is 25 cm2.

Assume the head loss consists of two losses: due to the sudden-expansion section and due to flow into tank B. Find the discharge between the two tanks.

708_Find the discharge between the two tanks.png
