Q. Find load resistance and voltage?

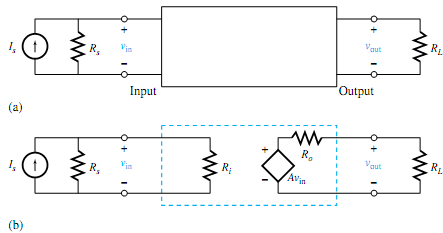

Let the amplifier block be connected to a current source at the input terminals, as shown in Figure(a), and to a load resistance RL at its output terminals. Find vout.

2280_What do you mean by Amplifier block.png
