Feeler Gauge: It is used to measure minor clearances. Feeler gauges come in set of a few blades of different thickness as shown in Figure. It is used to measure the spark plug gap and other similar gaps, e.g. tapped clearance.

1575_Feeler Gauge.png

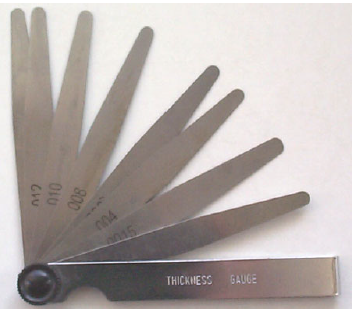

Figure: Feeler Gauge
