Explain the semantics of each field of ethernet frame, Computer Engineering

Assignment Help:

Give the format of Ethernet frame and explain the semantics of each field.

An Ethernet frame starts with headers which have three fields. The 64-bit preamble, which precedes the frame, consists alternating of 1's and 0's which allows the receiver's hardware to synchronize along with the incoming signal.

1730_Illustration of the frames format used with Ethernet.png

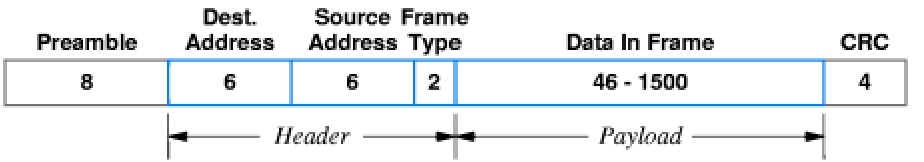

Figure: Illustration of the frames format utilized with Ethernet. The number into each field provides the size of field measured in 8-bit octants.

The First two fields of the header hold the physical addresses. The third field of the header contains 16- bit Ethernet frame type.
