Explain the Edge-triggered J-K flip-flop?

2440_Edge-triggered J-K flip-flop.png

The J-K flip-flop works extremely similar to S-R flip-flop. The merely difference is that this flip-flop has NO invalid state. The outputs toggle change to the opposite state while both J and K inputs are HIGH.

Truth Table.

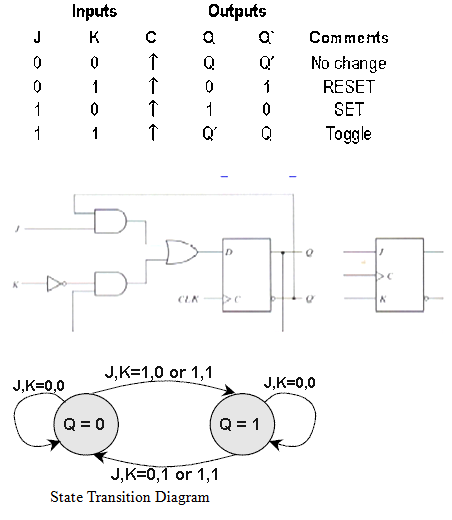

1844_Edge-triggered J-K flip-flop 1.png
