Explain Star topology.

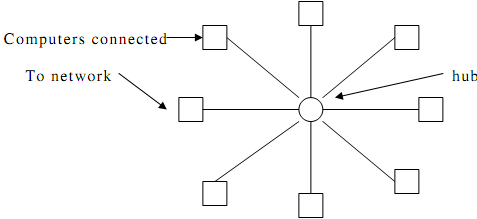

A network utilizes a star topology if each computer attach to a central point. The following figure demonstrates the concept:

1678_star topology.png

Star Topology

Since a star shaped network resembles the spoke of a wheel, center of a star network is often termed as a hub. While practice, star network seldom have a symmetric shape in that the hub is located at identical distance from all computers. As an alternative a hub frequently resides in a location separate from the computers attached to this.
