Explain Principal Process for Electro Chemical Machining

  • It is also called electrolytic machining or anodic cutting.
  • This process is quite commonly used for shaping hard metal or re-sharpening of cementing carbide cutting tools.

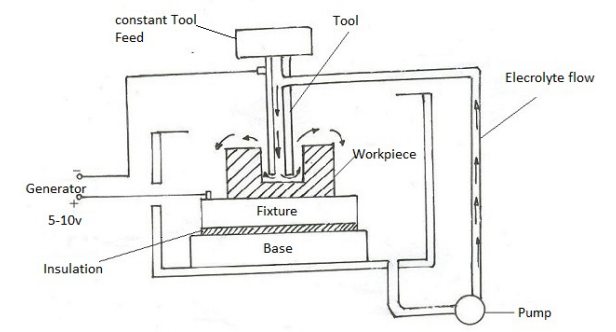

2112_Explain Principal Process for Electro Chemical Machining.png

  • This process is based on principal of faraday and ohm.
  • In this process an electrolyte cell is formed by the work piece (anode) and tool (cathode) in the midst of a flowing electrolyte in a very small gap of 0.025cm.
  • The metal removal is due to the ion migration towards the tool. The tool is provided with a passage for circulating the electrolyte with sufficient velocity to flush off the metallic ions from the cutting zone. The work is generally kept stationary and the tool is fed in a linear direction.
  • The electrolyte used is generally an aqueous solution. This process is ideally suitable for the production of deep holes.
