Explain mesh interconnection networks, Computer Networking

Assignment Help:

Mesh: This is two dimensional networks.  In this all processing elements are organised in a two dimensional grid. The processor in the row i and column j are indicated by PEi.

The processors on the corner are capable of communicating to two adjacent neighbours; it implies that PE00 can communicate with PE01 as well as PE10. The processor on the boundary can communicate to 3 neighbouring processing elements means that PE01 can communicate with PE00, PE02 and PE11 and internally placed processors can communicate with 4 neighbouring processors means PE11  can communicate with PE01,   PE10, PE12, and PE21.

2221_Explain Mesh Interconnection Networks.png

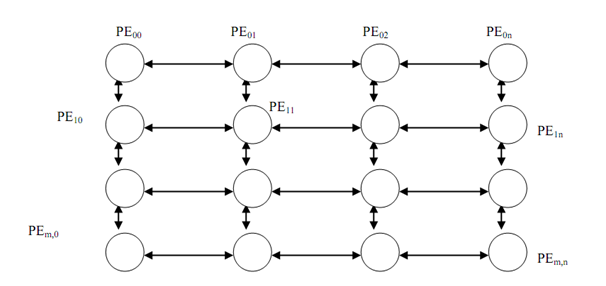

Figure: Mesh Network
