Explain Index Jig?

1. This type of jig, as the name suggests, incorporate a suitable indexing mechanism, by means of which the work piece can be indexed to required position.

2218_Explain Index Jig.png

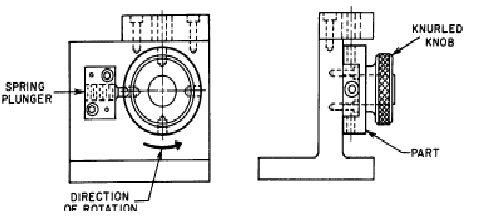

Figure: Index jig

2. By means of indexing device each time a hole is drilled, on the circular flange of work piece.
