Explain in detail about Collaboration Diagrams

Collaboration diagrams are interaction diagrams which emphasize structural organisation of an object that transmit and receive messages. There is always a path in collaboration diagrams which indicate how one object is linked to other and sequence numbers to show the time ordering of a message. The notation for depiction of a collaboration diagram is as:

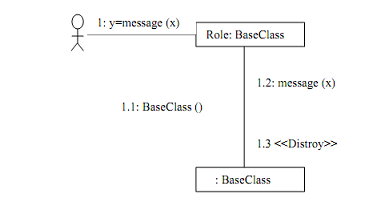

                          Figure: Collaboration diagram
