Explain about algebraic simplification, Computer Engineering

Assignment Help:

Q. Explain about Algebraic Simplification?

We have already determined algebraic simplification of logic circuit. An algebraic expression can exist in SOP or POS forms.  Let's inspect subsequent illustration to understand how it helps in realizing any logic circuit.

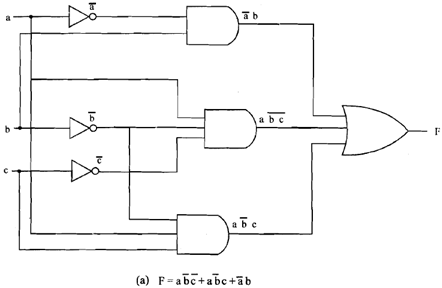

Illustration: Consider function F (a,b,c)  = ab¯c¯  + ab¯c +  a¯b . The logic circuit implementation of this function is displayed in fig (a).

2090_Explain about Algebraic Simplification.png

733_Explain about Algebraic Simplification1.png

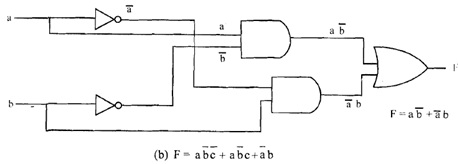

Figure : Two logic diagrams for same Boolean expression
