Evaluate the current using the loop-current method, Electrical Engineering

Assignment Help:

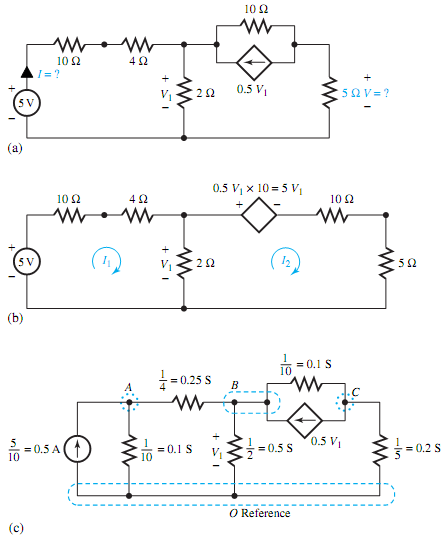

Consider the circuit in Figure (a), which include a controlled source, and find the current in the 5-V source and the voltage across the 5- resistor by using (a) the loop-current method and (b) the node-voltage method.

2272_Evaluate the current using the loop-current method.png
