Evaluate mccabes cyclomatic complexity, Software Engineering

Assignment Help:

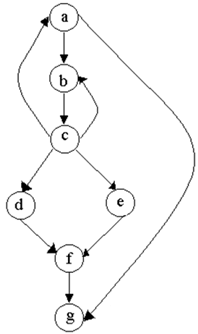

Q. For the flow graph showed in figure compute McCabe's Cyclomatic Complexity.

2354_Evaluate McCabes Cyclomatic Complexity.png

Ans: In this flow graph Number of regions are 5 hence the Cyclomatic complexity is

= 5

OR

No of edges = 10

No of nodes (N) = 7

Therefore Cyclomatic complexity + E-N+2 = 10-7+2 = 5
