Evaluate force and moment - mechanics, Mechanical Engineering

Assignment Help:

Evaluate force and moment:

What force and moment is transmitted to supporting wall at A

2427_Evaluate force and moment.png

1020_Evaluate force and moment1.png

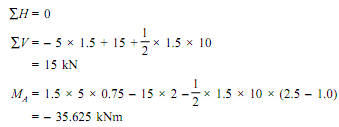

A force of 15 KN is transmitted to wall along with anticlockwise moment of 35.625kNm.
