ENHANCEMENT MODE MOSFET

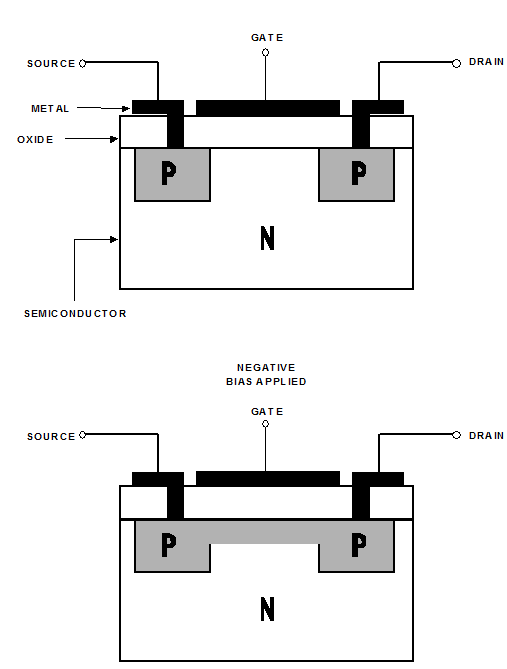

In the enhancement-mode type, the gate must be forward biased to produce charge carriers in the channel. These devices are normally of and do not conduct either at zero gate bias or for reverse gate bias. Figure shows P-channel enhancement type MOSFET.

P-channel Enhancement Type MOSFET1304_ENHANCEMENT MODE MOSFET.png

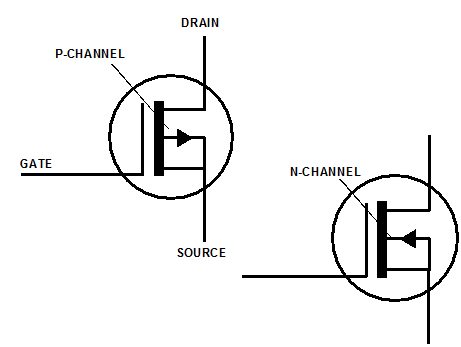

Figure shows the circuit symbols for P-Channel/N-Channel Depletion MOSFETS, figure N-Channel/P-Channel Enhancement MOSFETS.

2288_ENHANCEMENT MODE MOSFET1.png

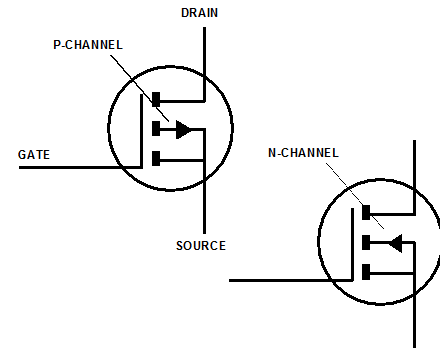

Depletion Mode MOSFET Circuit Symbols

120_ENHANCEMENT MODE MOSFET2.png
