With the help of block diagram Elucidate basic time division time switching method.

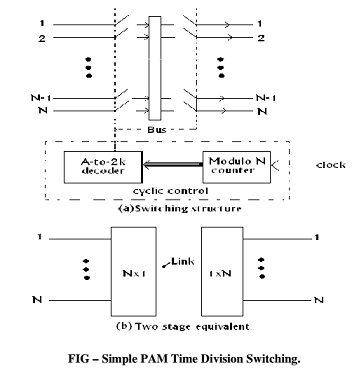

Basic Time Division Switching:Functional blocks of a memory based time division switching switch is demonstrated in Figure and its equivalent circuit in Figure below. In this organisation, data coming in through the inlets are written in the data memory and later read out to appropriate outlets. The outgoing and incoming data are generally in serial form while the data are written into and read out of the memory in parallel form.  It,  thus,  becomes  necessary  to  perform  parallel-to-serial conversion  and  serial-to-serial conversion  at  the inlets and outlets respectively. For convenience, data-in and data-out parts of the MDR are demonstrated separately for the data memory in Figure although in reality, MDR is a single register. Because there is just one MDR, a gating mechanism is essential to connect the requiredinlet/outlet to MDR. This is done by out-gate and in-gate units.
