Effect of power factor correction capacitors, Electrical Engineering

Assignment Help:

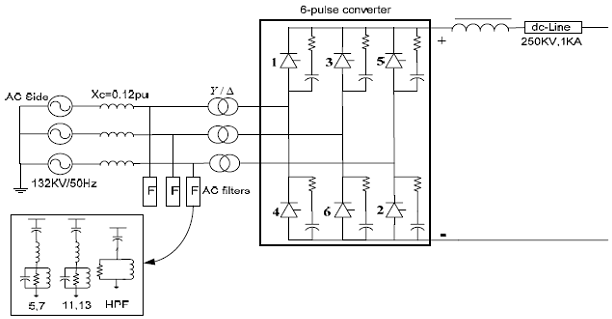

For a 50kW three phase rectifier connected at 415 V to a point of common coupling with a short circuit capacity 500kVA modelled as an inductive source, design filters to make the system conform to the harmonic voltage standard assuming no other sources present. Connection similar to figure below.
